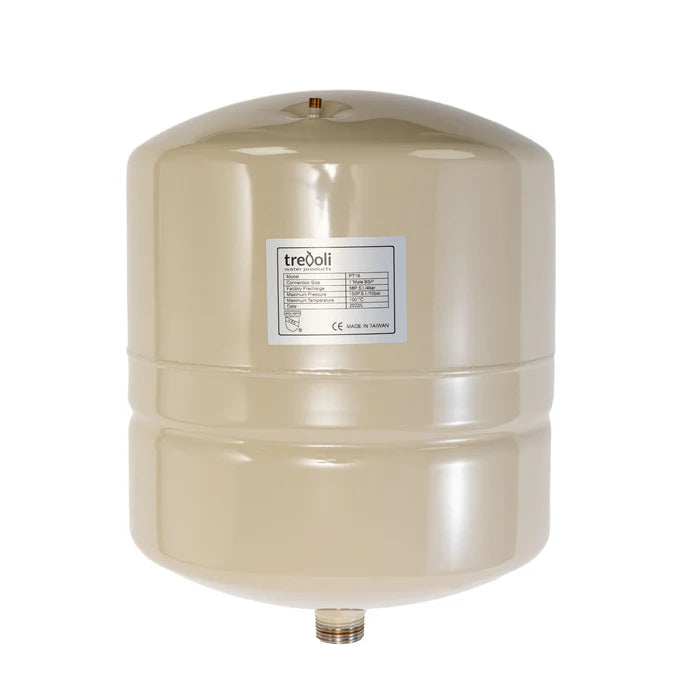

The Trevoli PT series is constructed with a proven single diaphragm design assembly that completely contains drawdown water. The diaphragm is constructed with an FDA approved, high grade butyl rubber compound. Trevoli PT series pressure tanks are made with a stainless steel system connection and are finished with an appliance quality paint finish especially suited for outdoor installations. Trevoli PT series pressure tanks are quality tested at several stages on the production line to insure the structural integrity of every tank.
Our Trevoli Pressure Tanks come pre-charged to 58 PSI (4 bar) and are charged with Nitrogen gas. Simply put, the use of nitrogen in Pressure tanks effectively displaces moisture and oxygen and creates a more stable climate.
(Available in Vertical model only)
Specifications:
*Size: 18L *Drawdown: 7.2L *Dimensions: 280mm x 370mm *Weight: 3.7kg *Max temperature: 100° *Max Working Pressure: 10 Bar *25mm Outlet
Applications:
*Booster systems *Shallow jet pumps *Centrifugal pump configurations
Features:
*Rugged outer shell *10 bar pressure rating *Single diaphragm design *Comprehensive testing *Virgin Polypropylene liner *Patented stainless steel water connection *Leak free O-Ring sealed air valve *Maintenance free
