The R3 sensor builds on the success of the V2 model to provide accurate and affordable tank level monitoring. The fully sealed sensor unit uses a non-contact radar sensor to measure tank levels with millimeter accuracy, to ensure years of trouble free operation.

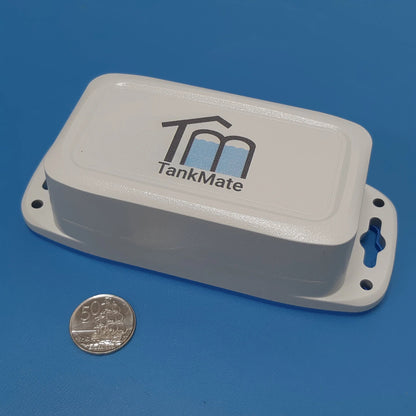

Our R3 sensors are housed inside a robust polycarbonate enclosure with an IP68 weatherproof rating to ensure it can stand up to the elements. Powered by 3xAA batteries, the sensor requires no external power and provides intelligent battery monitoring via the mobile app.

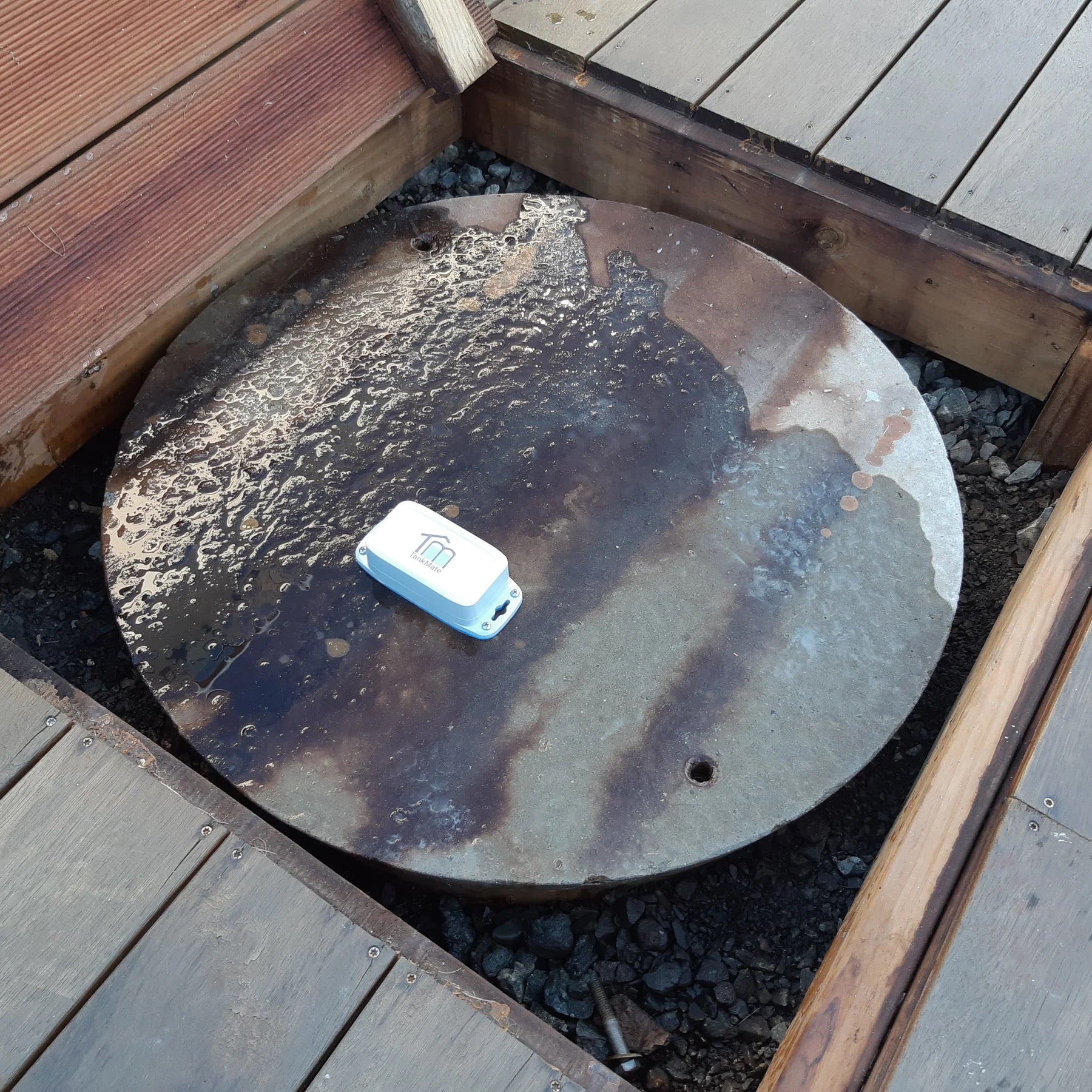

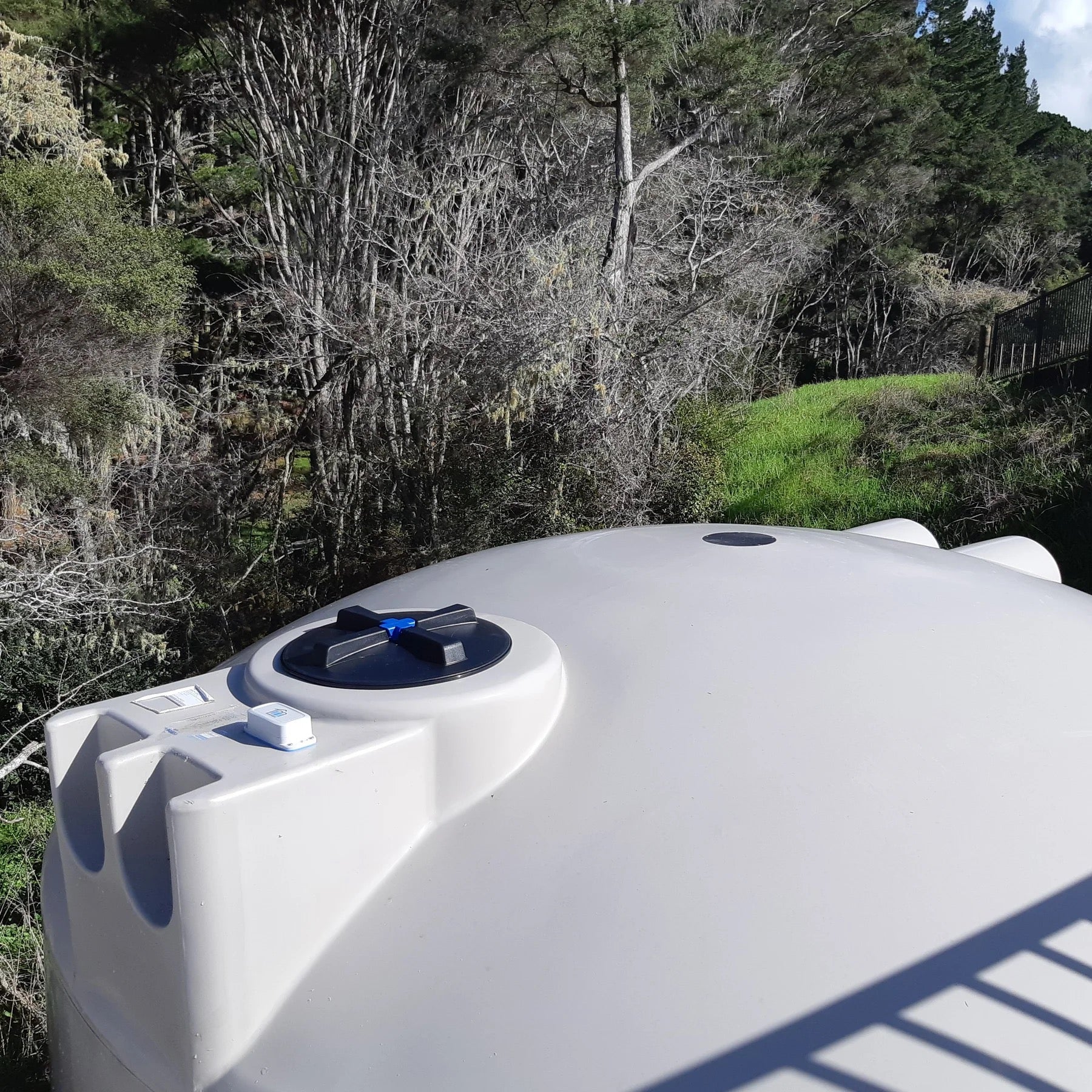

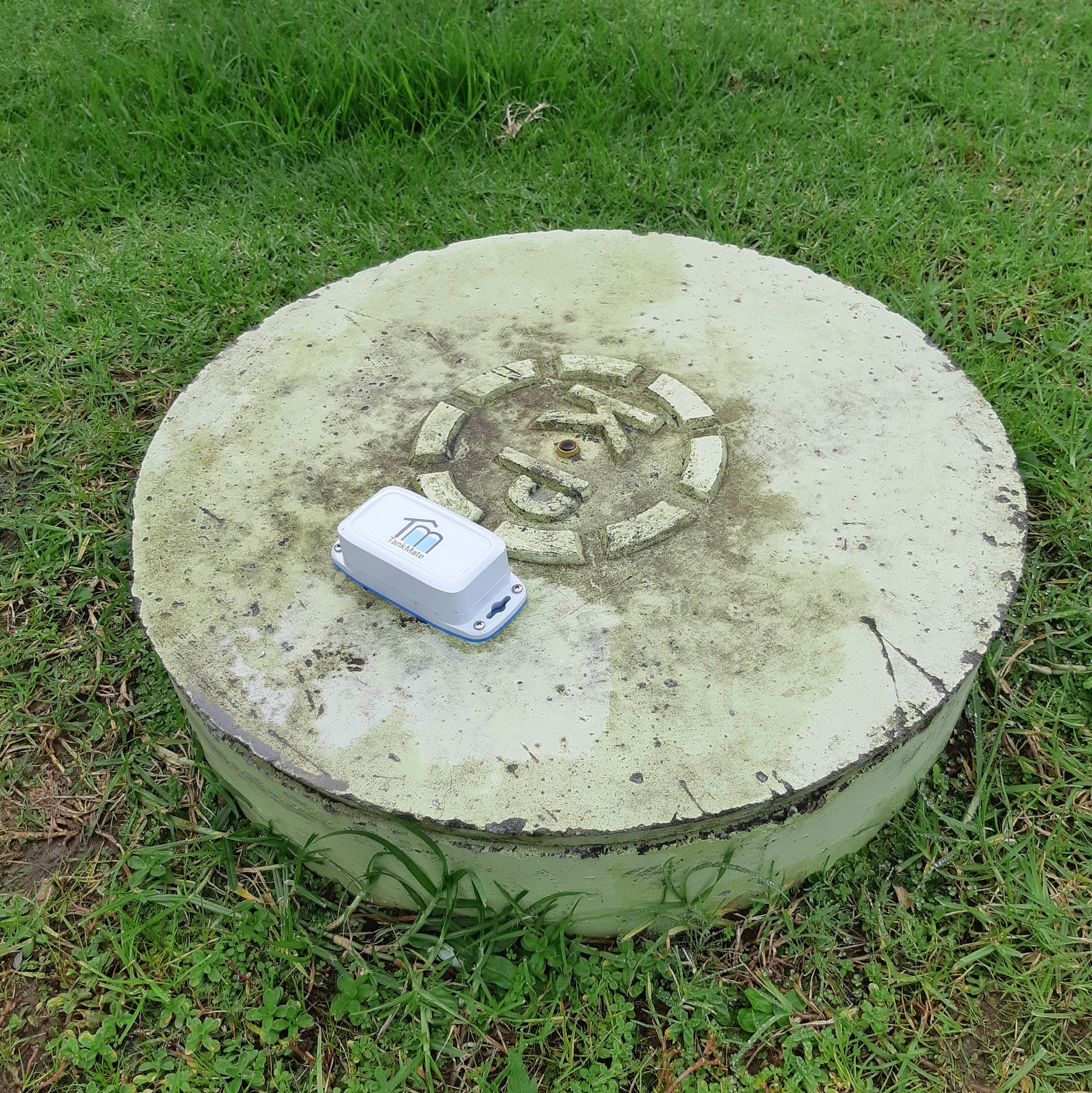

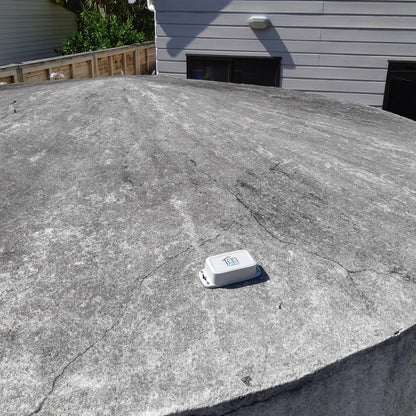

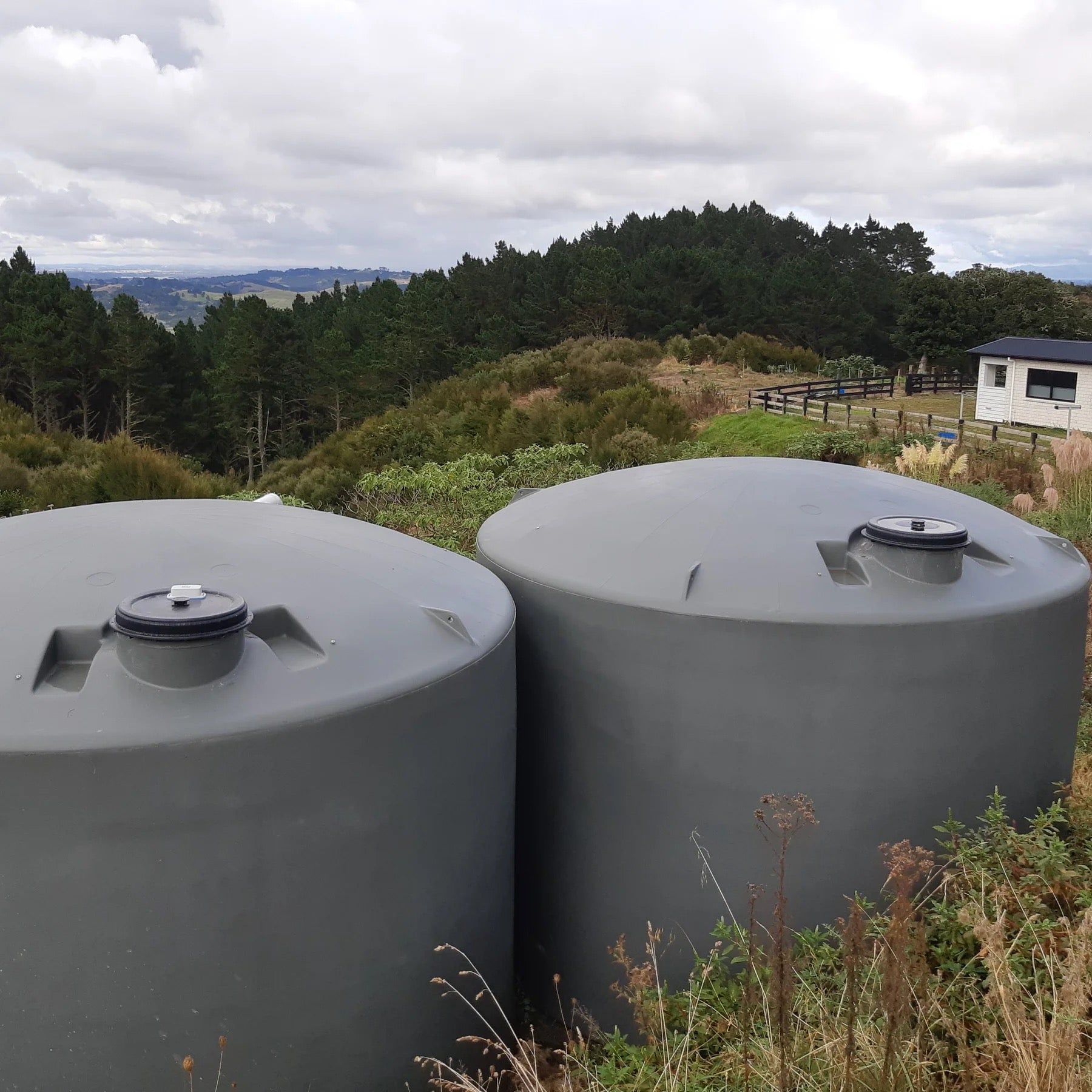

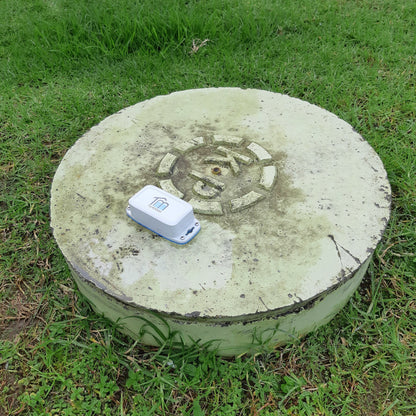

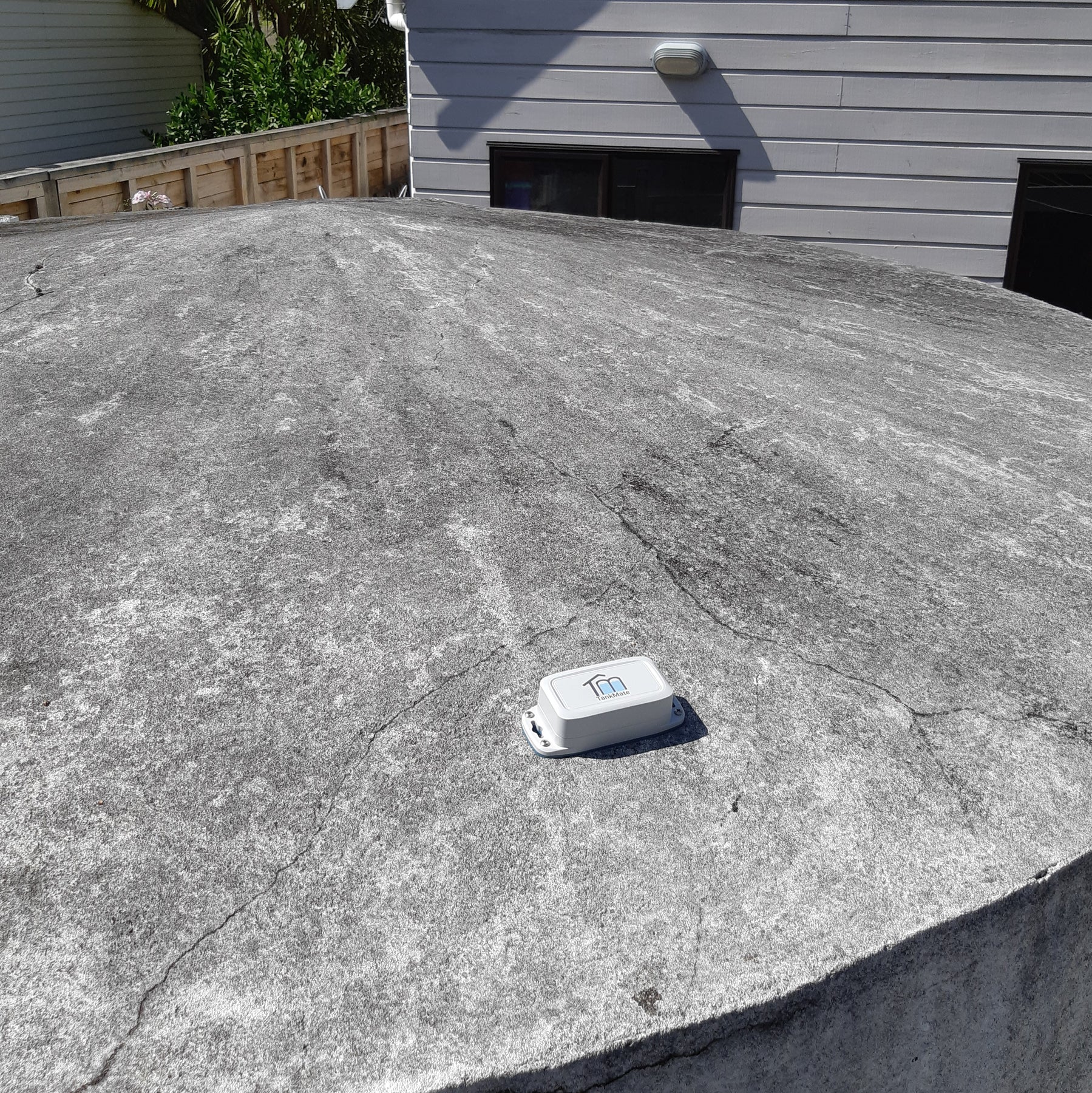

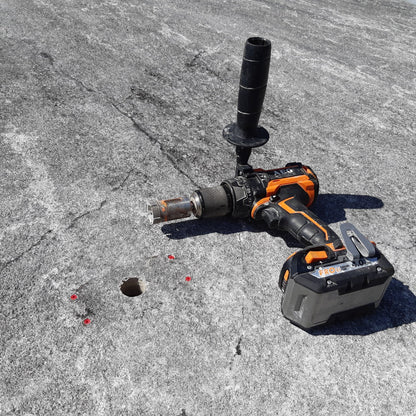

This sensor can be used with a variety of tank types and shapes - installation requires a 30mm hole to be drilled in the tank lid / roof (at least 100mm above the water height). A single sensor can be used to monitor multiple tanks that are connected and have a common level.

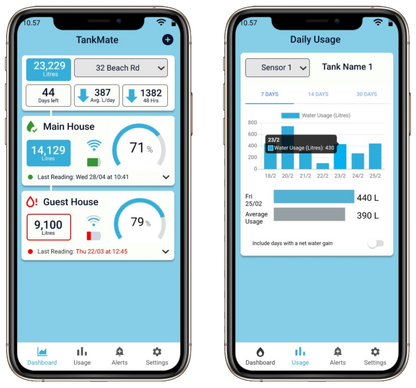

Access your tank data online with the free TankMate app for mobile (iOS & Android) and web.
Optional in-app Premium features include phone notifications, detailed usage statistics, and multiple sensor monitoring (12 month free trial period included with first purchase). See app page for pricing.
Specifications
- Wi-Fi connectivity (2.4GHz / 801.11b/g/n)
- Durable polycarbonate enclosure: IP68
- Size: 150 x 68 x 42mm (including mounting tabs)
- 1mm sensor resolution
- Reading range: 100mm to 3m
- Simple installation - no calibration required
- 30mm hole required for installation on a tank
- Power: 3 x AA 1.5v batteries (included)
- Up to 3 years battery life* with Energizer Ultimate Lithium batteries (included)
- 24 month return to base warranty
*Typical battery life, with data published twice per day. Poor signal quality may further reduce battery life.
