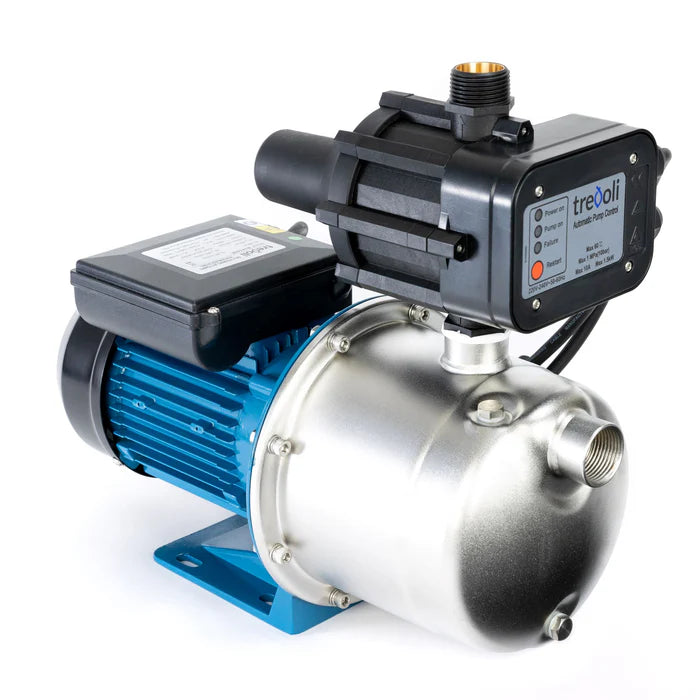

TREVOLI BJZ100E - Stainless Steel Jet Pump for Large Home - 1 HP
This pump is ideal for domestic water supply, providing good pressure for a medium size single or double level home supporting up to 5 taps running at one time. Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) Starts automatically when the tap is turned on and Stops automatically when the last tap is turned off, Operating constantly from low flow to full flow
Recommendation:A pressure tank extends pump life, stores energy, reduces noise, reduces pump starts and protects against heat expansion, see drop-down menu. A free three-way tee is provided with any pump and pressure tank combination.
Specifications:
* Power -750W - 1 Horsepower * Single phase with standard NZ 3 pin plug * Max Flow rate: 70 Liters per minute * Max Pressure: 62 psi * Max suction lift: 8 metres * Max discharge head: 43 metres * Weight: 10 Kg * Inlet/Outlet sizes: 1 inch BSP (same as 25mm) * Built in themal overload protection * Insulation class B * IP55 Protection * Rated for Continuous duty * Liquid temperature range: 5 - 60 deg C * Max operating pressure: 6 bar * Length: 370mm * Height: 360mm * Width: 200mm
Common Applications:
* Water supply for medium and large sized homes * General water transfer systems * Domestic Household Pumps
Features:
* Fitted with an electronic automatic constant pressure control system (provides constant pressure at constant flow) * Self Priming * Starts automatically when the tap is turned on (and pressure drops to 2.2 bar) * Operates constantly from low flow to full flow * Stops automatically when the last tap is turned off * Run Dry Protection * Corrosion resistant stainless steel construction * Stainless steel pump housing * Stainless steel motor shaft * Built in thermal overload protection
Supports 5 taps running at once (Based on 10 Litres per minute)
