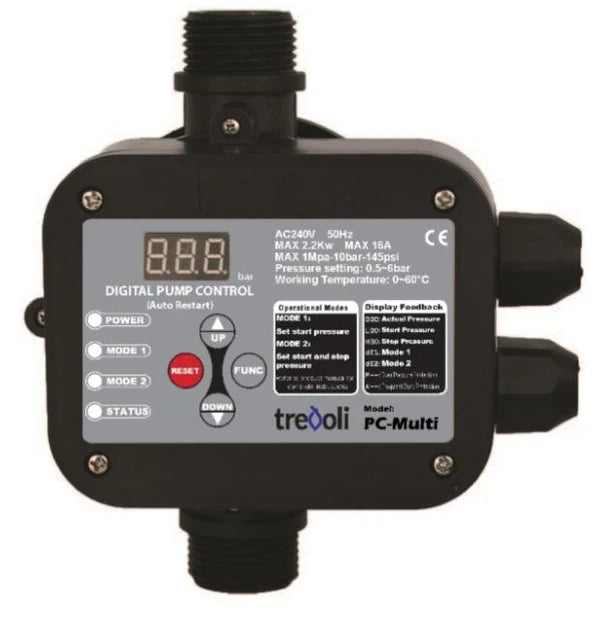

The Trevoli PC-Multi is an adjustable automatic controller used designed to work in conjunction with electric 240V pumps of 2.2kW or less. It has a fully adjustable cut in (start) pressure of between 0.5-6.0 bar and a cut out (stop) pressure of between 0.8-9.8 bar. The Trevoli PC-Multi has the ability to operate as either a standard auto restart pressure controller (start pressure to be set) or an automatic restart loss of prime pressure switch (start and stop pressure to be set).
Specifications:
*Inlet/Outlet: 1”/25mm BSP male thread *Voltage: 220-240v *Maximum Power: 2.2 kW *Starting pressure: 0.5 - 6.0 bar
Features:
*Built in Non-return valve *No flow/loss of prime protection *Manual start switch (RESET) *Voltage LED (GREEN power on light) *Mode 1, mode 2, LED (RED pump run light) *No flow LED (ORANGE status light) *Adjustable cut in (start) pressure *Real time indication of system pressure displayed on LED display *Automatic restart
Applications:
*Supplying water to domestic households. *Small scale garden irrigation *Tank to tank transfer
Technical Features:
*Maximum current: 16 Amps *Frequency: 50Hz *Ingress protection: IP65 *Maximum water temperature: 60 deg C. *Starting pressure: 0.5 - 6.0 bar *Minimum flow: 0.5 l/m *1.5 metre lead and 3 pin Australian/New Zealand plug *0.6 metre pump power lead, plug and play
Auto Restart Function
When the pump loses prime it will stop working after 20 seconds then restart after 10 seconds and runs for 40 seconds and then stops. Then after 10 seconds runs for another 40 seconds after which if no water is available the pump will turn off for 24 hours repeating the process every 24 hours until water is available.
